Honda - Generator - EU22i

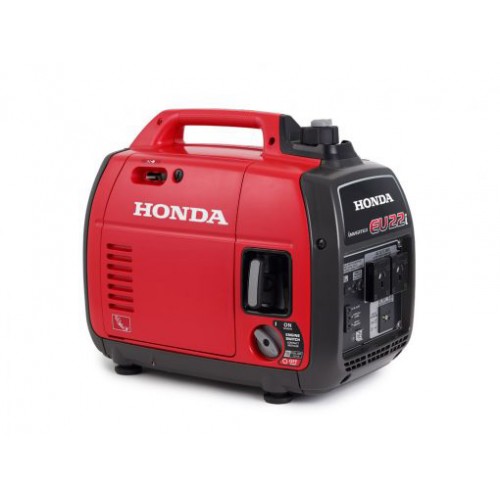

Honda EU22i Generator

• The Honda EU22i delivers better than commercial quality electricity, it has greater fuel efficiency via the built-in Eco-Throttle, increased diameter of oil filler for improved draining & catching of oil and improved recoil starter handle with new metal guard.
• It has Honda’s advanced 4-Stroke GXR120 engine, which is 20% larger in capacity than the EU20i Generator. The GXR120 has a maximum output of 2200W and up to 8 hours of continuous operation on Eco-Throttle+, 4 litre fuel tank and whisper-quiet operation.

SPECIFICATION

ENGINE

• ENGINE: GXR120
• DISPLACEMENT: 121(cc)
• IGNITION SYSTEM: Transistor
• OIL ALERT: Yes
• STARTING SYSTEM: Recoil
• STOPPING SYSTEM: Ignition primary circuit ground
• RECOMMENDED FUEL: Unleaded
• FUEL TANK CAPACITY (LITRES): 3.6
• CONTINUOUS OPERATING HOURS: 8hrs*
• OPERATING NOISE LEVEL (AT 4M): LwA 91dB(A)**

DIMENSIONS

• DIMENSIONS (LxWxH): 511 x 290 x 425 (mm)
• DRY WEIGHT (KG): 21kg



FEATURES

• MAXIMUM AC OUTPUT: 2200
• VARATED AC OUTPUT: 1800VADC OUTPUT (GENERATOR/CHARGER): 8.3A
• BATTERY CHARGING: Yes
• FREQUENCY METER: No
• VOLT METER: No
• GENERATOR TYPE: Mulitpole field rotation type (inverter)
• RATED VOLTAGE: 240 (V)
• RATED FREQUENCY: 50 (Hz)
• FUEL GAUGE: No
• AC CIRCUIT BREAKER: Yes
• DC CIRCUIT BREAKER: Yes
• AUTO THROTTLE: Eco-throttle
• AUTO CHOKE: No
• LARGE CAPACITY AIR CLEANER: Yes
• LARGE CAPACITY FUEL TANK: Yes
• LARGE CAPACITY MUFFLER: Yes
• PILOT LAMP: Yes
• AIR CLEANER: Dual element type
• PARALLEL OPERATIONS CONNECTION PORTS: Yes
• PARALLEL OPERATIONS CONNECTION CABLE: Optional
• 4 WHEEL DOLLY KIT: No
