Scag - Mowers - Liberty Z 52"

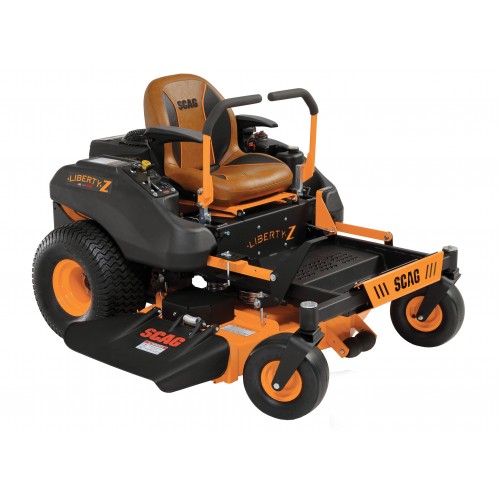

Liberty Z 52″

Mowing your lawn – especially if it’s a larger property – can start to feel like a chore when you’re stuck behind a traditional lawn tractor or cruising on a traditional riding lawn mower.

Thankfully though, with a Liberty Z (particularly one with a 52 inch mowing deck like this one) you’re never going to have to worry about the long, drawn out mowing process any longer.

Instead, you’re going to be able to count on this mower (and its Kawasaki FR Series motor) to help you fly across your lawn while clipping your grass perfectly and consistently along the way. You can motor at up to 16 km/h with this lawnmower running fullbore, all with the ability to safely and easily turn and pivot immediately to eliminate much of the inefficiencies traditional mowers bring to the table.

At the end of the day, it’s nice to be able to rely on the legendary reputation and durability of these SCAG lawn mowers. The Liberty series is one of the flagship lineups offered by this top-tier company, and your investment is not only protected thanks to high quality construction materials and engineering but a best in the industry warranty as well.

Compare  Print

Liberty Z In Action

All SCAG mowers sold in Australia carry a 5 year residential warranty, please disregard warranty stated in video.

Features

DEEP, FABRICATED, AND WELDED CUTTER DECKS

Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Tubular-steel main frame delivers unmatched strength and longevity.

SPEEDS UP TO 7 MPH

The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels.

MORE UPTIME

Fewer grease points increase operator convenience and ease-of-ownership.

RIDE IN COMFORT

This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.

EASY UP, EASY DOWN

Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.

RELIABLE POWER, UP TO 24 HP

Powered by a Kawasaki® FR engine. Engine provides smooth, reliable power to get the job done with ease.

Product Details

• Up to 7 MPH forward speeds and 5 MPH reverse speeds keep productivity at a maximum.
• 36″, 48″, 52″ or 61″ fully fabricated cutter decks are tough and deliver the beautiful cut that Scag mowers are known for.
• Kawasaki FR Series engine is ultra-powerful with excellent torque output feature a larger oil, air and fuel filter. 4 cycle gas, forced air-cooled, OHV, twin cylinder, vertical shaft engine with fully pressurized oil system.
• Heavy-duty hydraulic drive system includes dual Hydro-gear ZT2800 transaxles (36″, 48″ & 52″ models) or ZT3100 (61″ models) for reliable, Zero Turn maneuverability. Cooling fans on the transaxles add to long-life. All metal gears and charge pumps for reliability and increased performance.
• 5.5 gallon fuel capacity (single tank) lets you cut longer between fill-ups. (3.5 gallon fuel capacity on 36″ models)
• Heavy-duty, aluminum, sealed ball bearing blade drive spindles provide reliable performance season after season.
• Tubular steel main frame delivers unmatched strength and longevity.
• Open, easily accessible engine compartment makes maintenance easy and provides ample cooling for the V-twin engine. Engine oil drain and air filter are within easy reach.
• Large 20″ drive tires and 11″ caster tires deliver a nice ride and excellent traction.
• Full-featured instrument panel features ignition switch, throttle control. choke control, PTO deck engagement switch and a digital hourmeter with built-in maintenance reminders. Hour meter only activates when the engine is running to accurately record engine time.
• The Ogura PTO Clutch Brake delivers big starting and stopping torque to the cutter deck. Adjustable airgap ensures long component life
• Interlocked parking brake system prevents the mower from being driven with the brake on, avoiding premature wear.
• Large diameter, padded steering levers make driving the Liberty Z a breeze. Total control, at your fingertips.
• High-strength steel cutter blades stay sharp longer for a better looking cut and reduced maintenance.
• Easily adjust cutting heights from the seat with the convenient, easy to lift, foot pedal. Wide range of adjustment from 1-1/2″ to 4-1/2 ” in 1/4″ increments.
• Cupholder keeps beverage within easy reach and is standard equipment.
• Deck leveling adjustment brackets allow for easy deck leveling adjustment.
• Highly flexible discharge chute will not dent and is easy on the landscape.
• No plastic pulleys – Some [other brands] actually use plastic pulleys on their mowers. Not Scag. All Scag pulleys are made from metal. Plastic is for toys.
• High-quality bearings and bearing debris guard on idler pulleys ensure long, reliable service.
• Spring loaded idler arms effortlessly keep belts in constant adjustment for maximum life and minimum maintenance.
• Excellent stability due to an exceptionally low center-of-gravity and extra wide stance.
• The Scag “Simply the Best” warranty stands behind you and your mower for years of service. 5-years or 750 hours (whichever comes first)
• High quality electrical components such as switches, wiring and harness looms are used throughout the Scag mower line for trouble-free service.
• There are many, time saving, accessories for the Liberty Z like the Tiger Striper lawn striping kit, 2 bag grass catchers, halogen light kits and more.
• Actual ground speed may vary. Specifications subject to change without notice or obligation.
•
